Allows for in-depth analysis on operations.

INDICE

• Perfomance-Operations
  • Report Operations;
  • Report-Executed
  • Report-Symbol
  • Graphic
  • Analysis-Time
• Hypotetical Result

Perfomance Operations

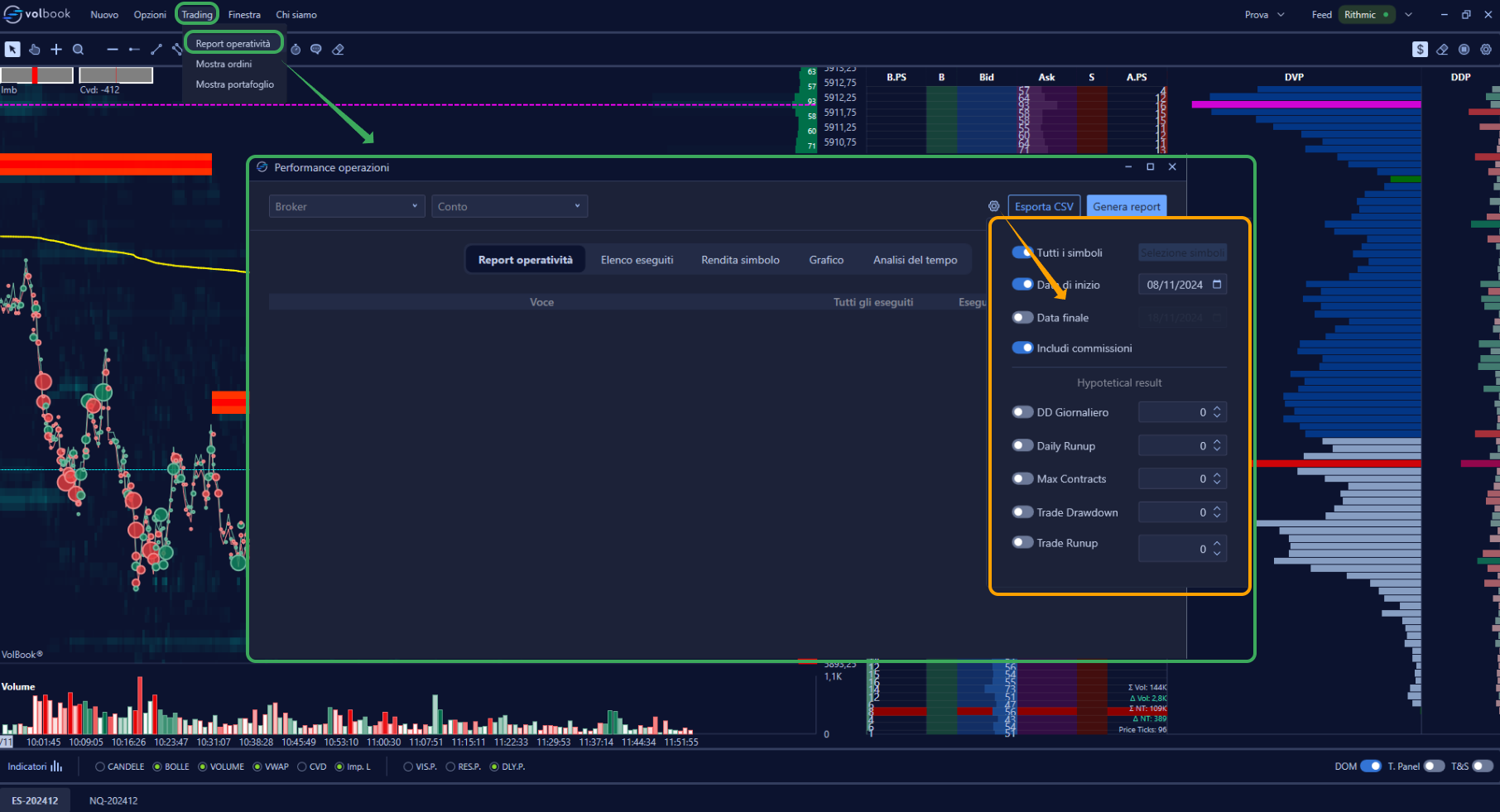

Click on the Trading of VolBook and select Trading.

Select the Broker and Account to which you wish to perform the analysis and through the cog in the upper right hand corner select the desired date and symbols.

Click on Generate report to begin the analysis.

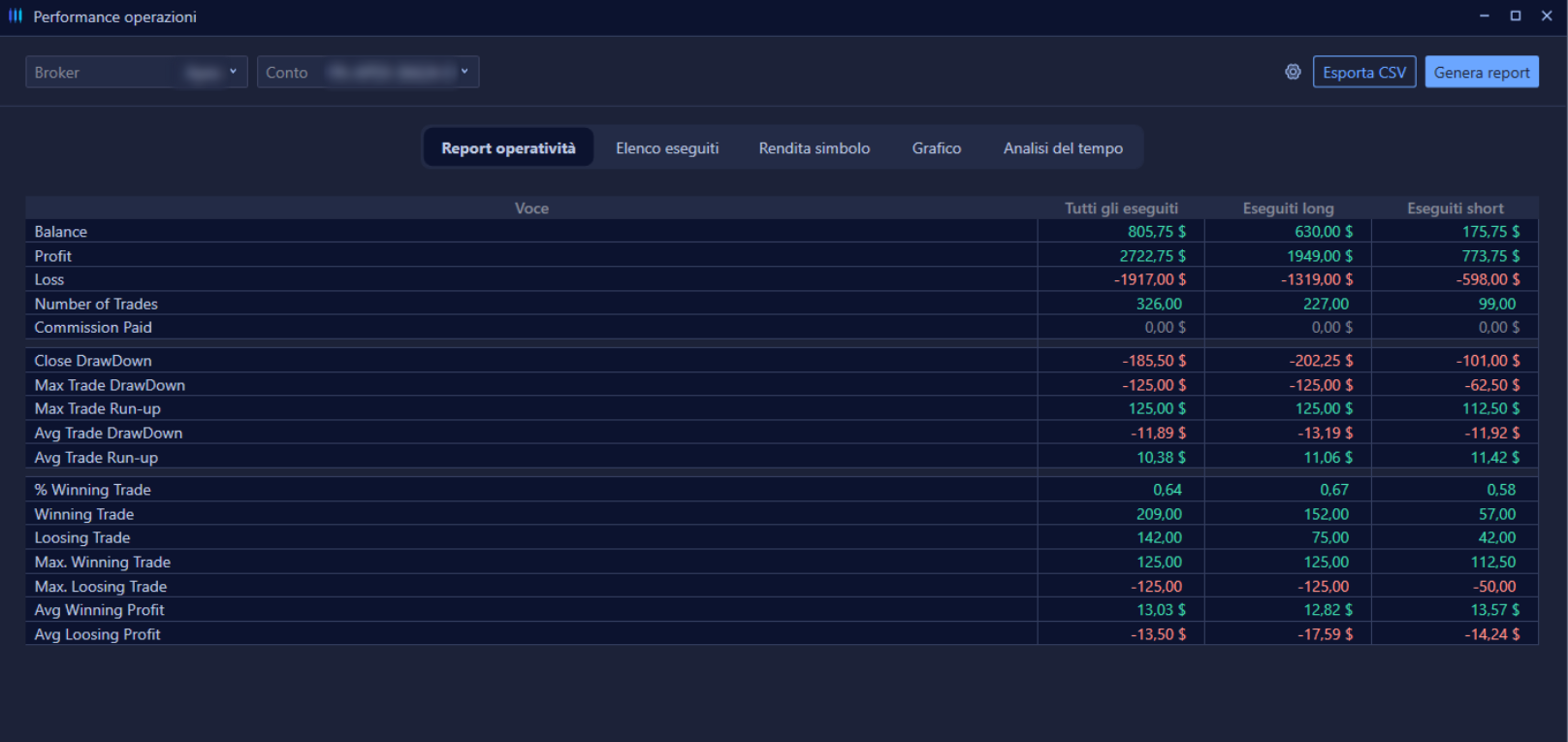

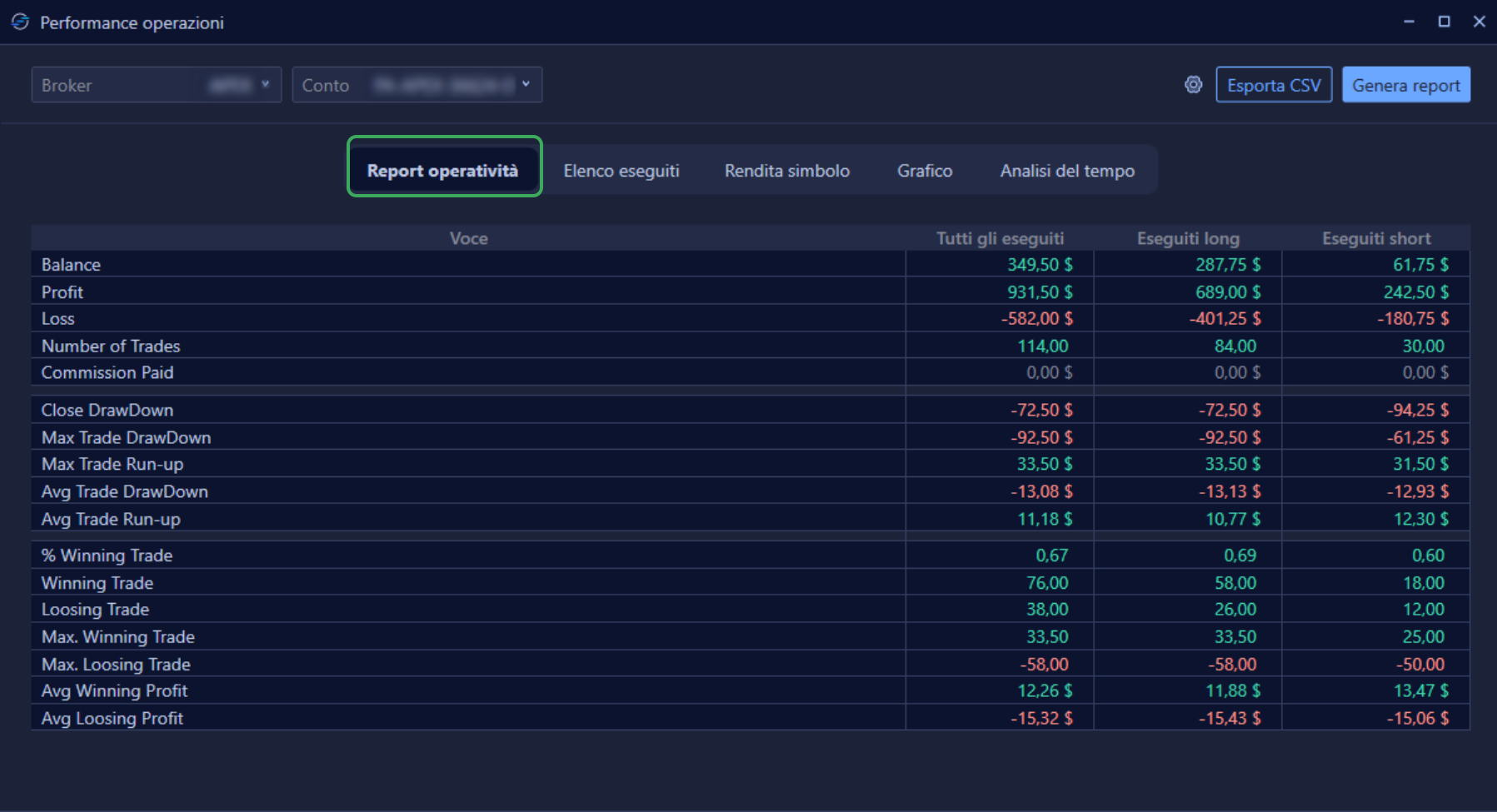

Report Operationsà

Show summary of the'operativenessà of the selected period, in particular it shows the Balance of the period, the Profit made, the Losses made, the Number of Trades made, and the Commissions made (if you enable the relevant item).

Secondly, it shows other useful information about the trades such as DrawDown, Run-up and the percentage of winning trades.

Each piece of information is divided between Executed Long, Executed Short and All Executed.

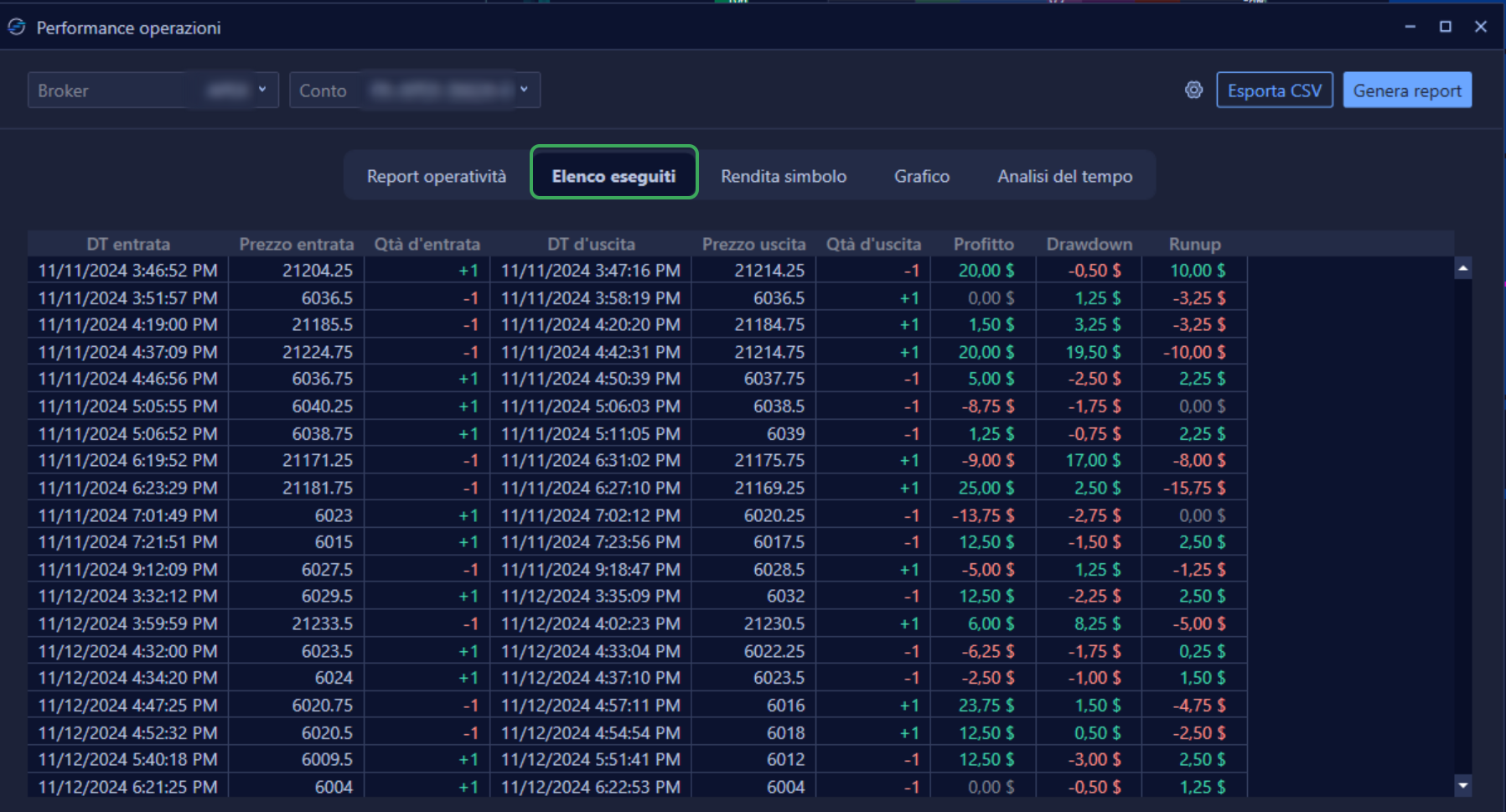

List-Executed

Displays in detail time of entry and exit, price of entry and exit with the relative quantity;, profit made the drawdown and runup of each trade made.

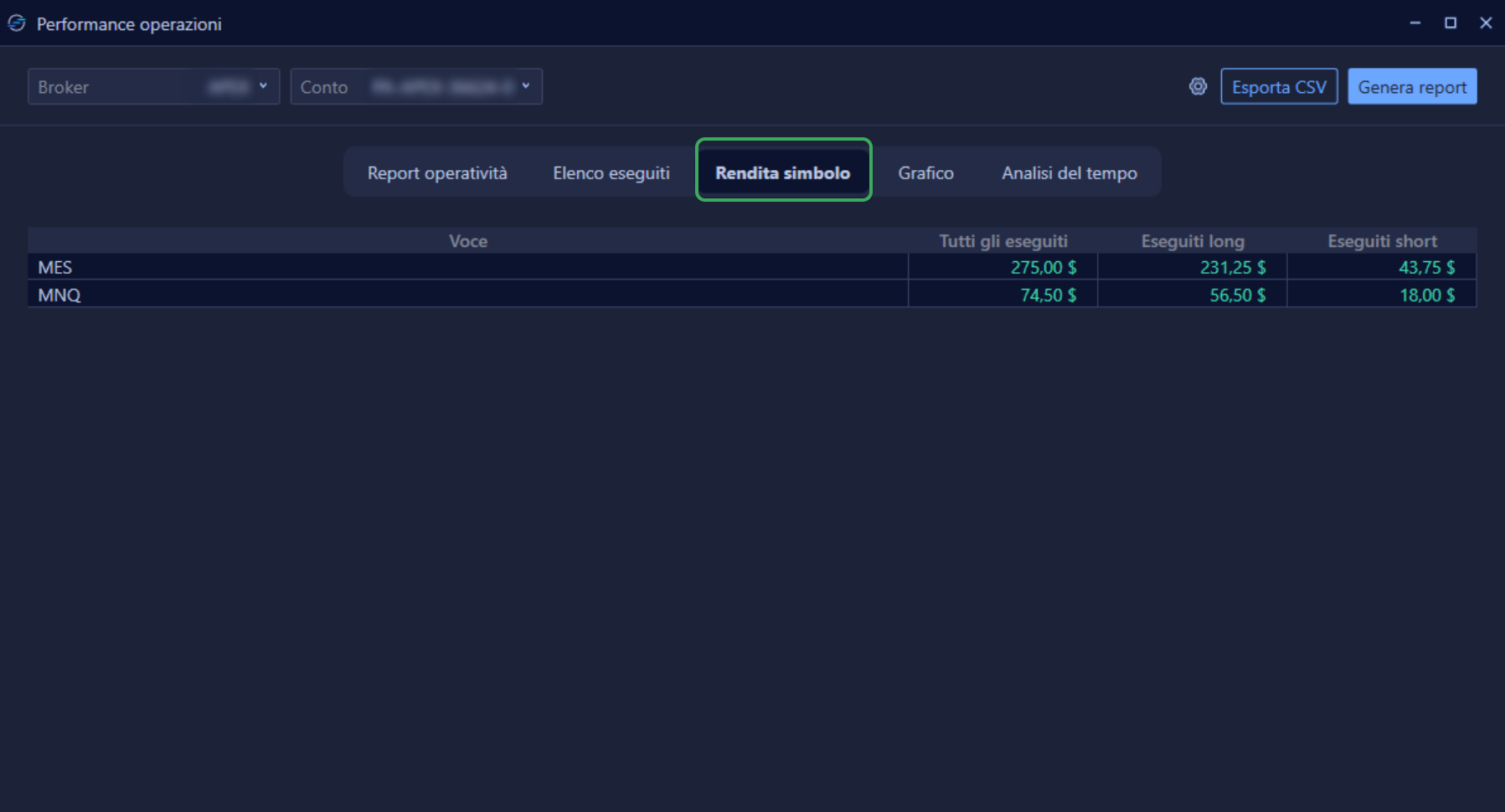

Symbol Yield

Show the balance of each symbol traded in the selected period.

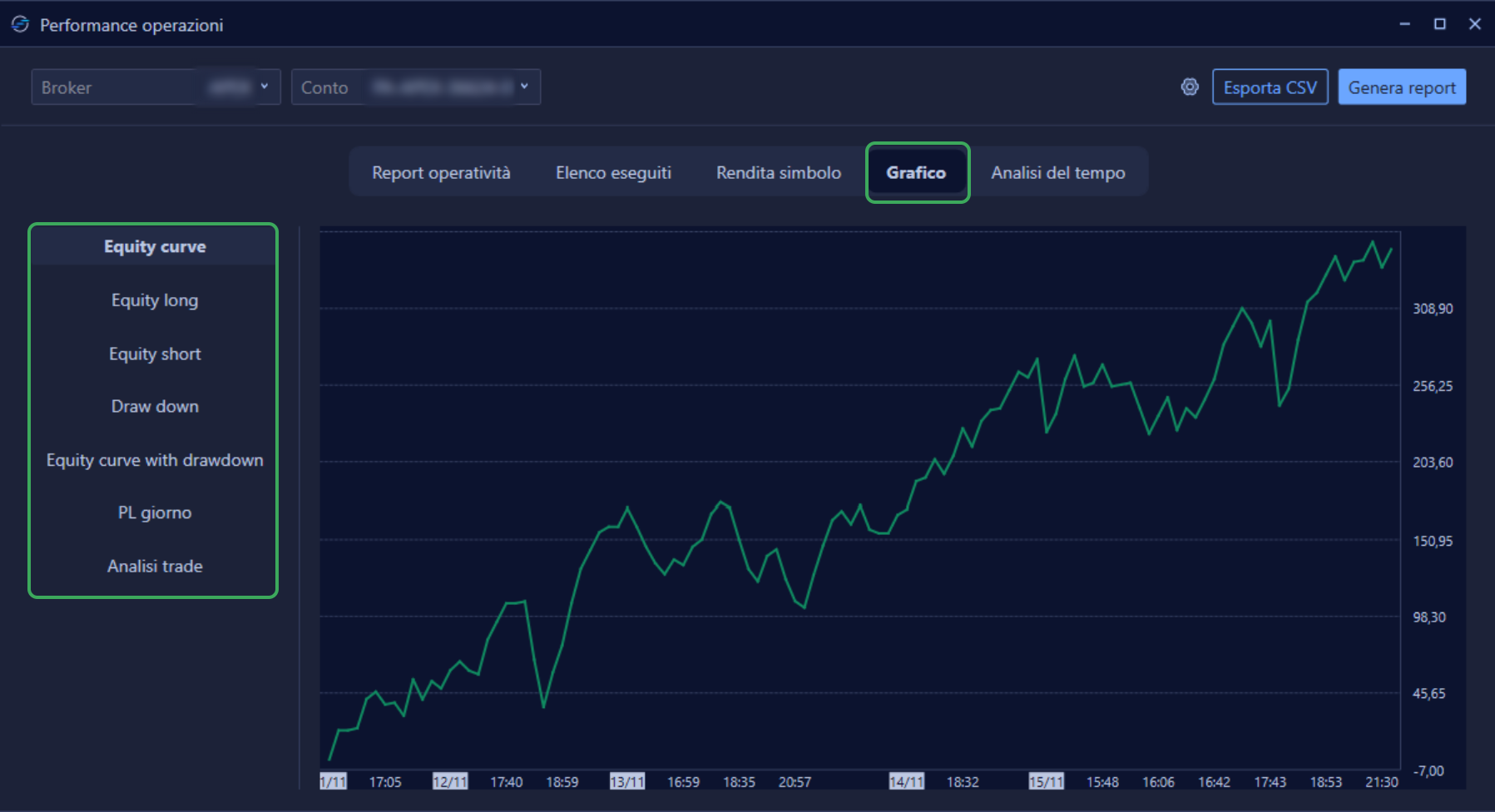

Chart

Show various charts related to trades, allowing you to view the equity curve, drawdown or perform an analysis of individual trades.

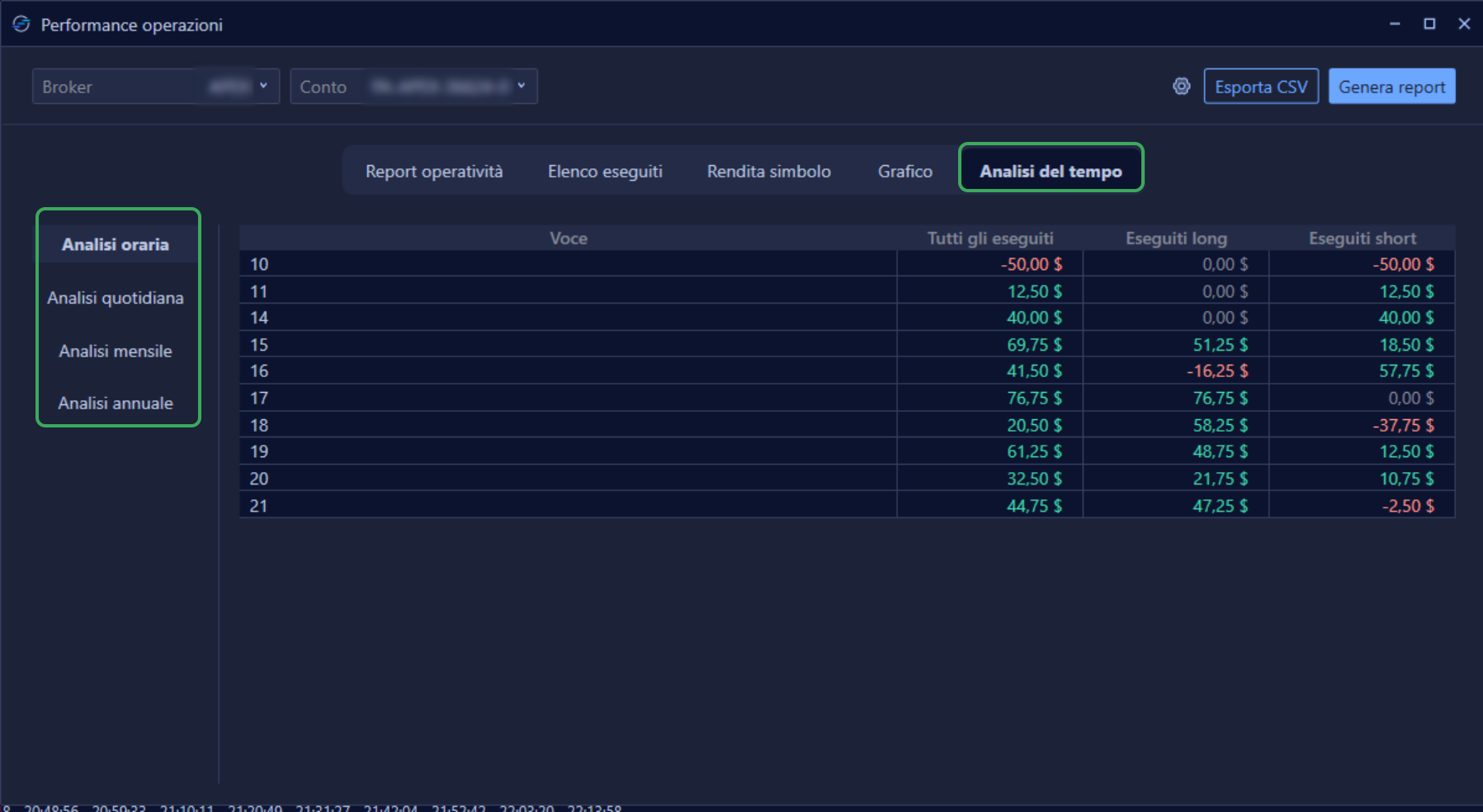

Time Analysis

Show on an hourly basis at which hours of the day you è more profitable and at which you è less profitable. Thereò canò highlight situations in which at a particular time particularly unfavorable to one's trading; goes to affect the results obtained, the user canò then decide not to trade anymore at that time or perhaps pay more attention.

This analysis can also be done on a daily, monthly and annual basis.

Hypotetical Result

Clicking on the little wheel in the upper right è it is possible to apply money management rules to the trades made, so as to identify any mistakes made or situations that lead to deteriorating perfomance results.

Specifically:

• Daily DD

Defines the maximum Daily Drawdown, reached which stops the session's operativeness.

• Daily Runup

Defines the maximum Daily Runup, reached which interrupts the operativityà of the session.

• Max Contracts

Defines the maximum number of contracts that can be used.

• Trade Drawdown

Defines the maximum Drawdown on the individual trade, reached which the trade is closed.

• Trade Runup

Defines the maximum Runup on the individual trade, reached which the trade is closed.

In particular the Drawdown measures the maximum loss relative to the peak reached in a given period, if for example you set a Trade Dradown of $100 and at the opening of the position the trade goes in profit by $50 if from that peak it comes back and goes in loss by $50 you è reached a Dradown of $100 and the trade is closed.

The Runup è the opposite of the dradown and represents the maximum profit over a minimum reached in a given period.

To apply a rule enable its checkmark and indicate the value next to it. Finally, click on generate report.

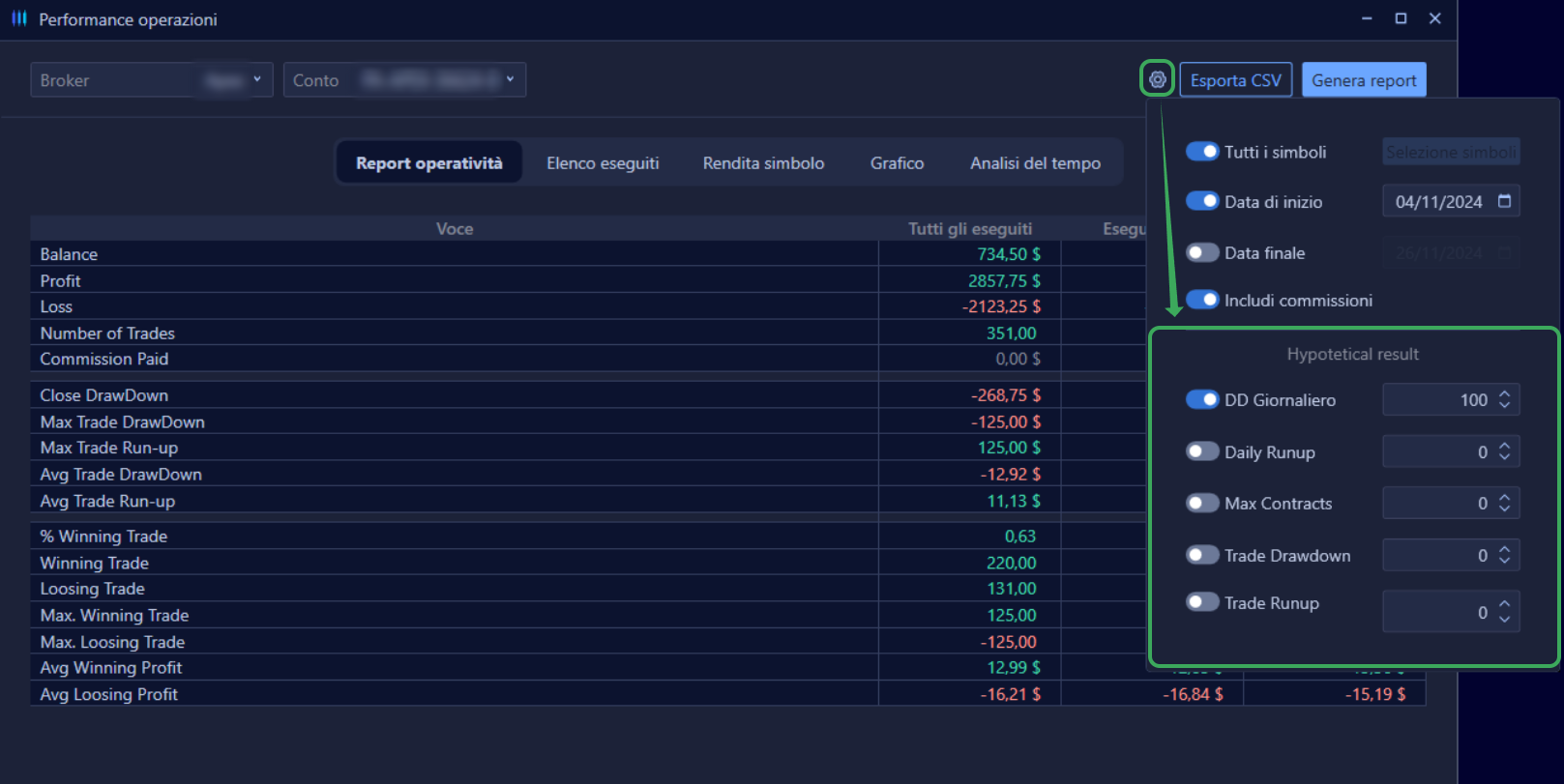

In the figure below is analyzed for example the case of a maximum daily Dradown of 100$ and as you canò notice from the Balance the situation would be improved, a sign of how in such a situation when you reach that drawdown limit you struggle to recover, so better to close the trading session.
