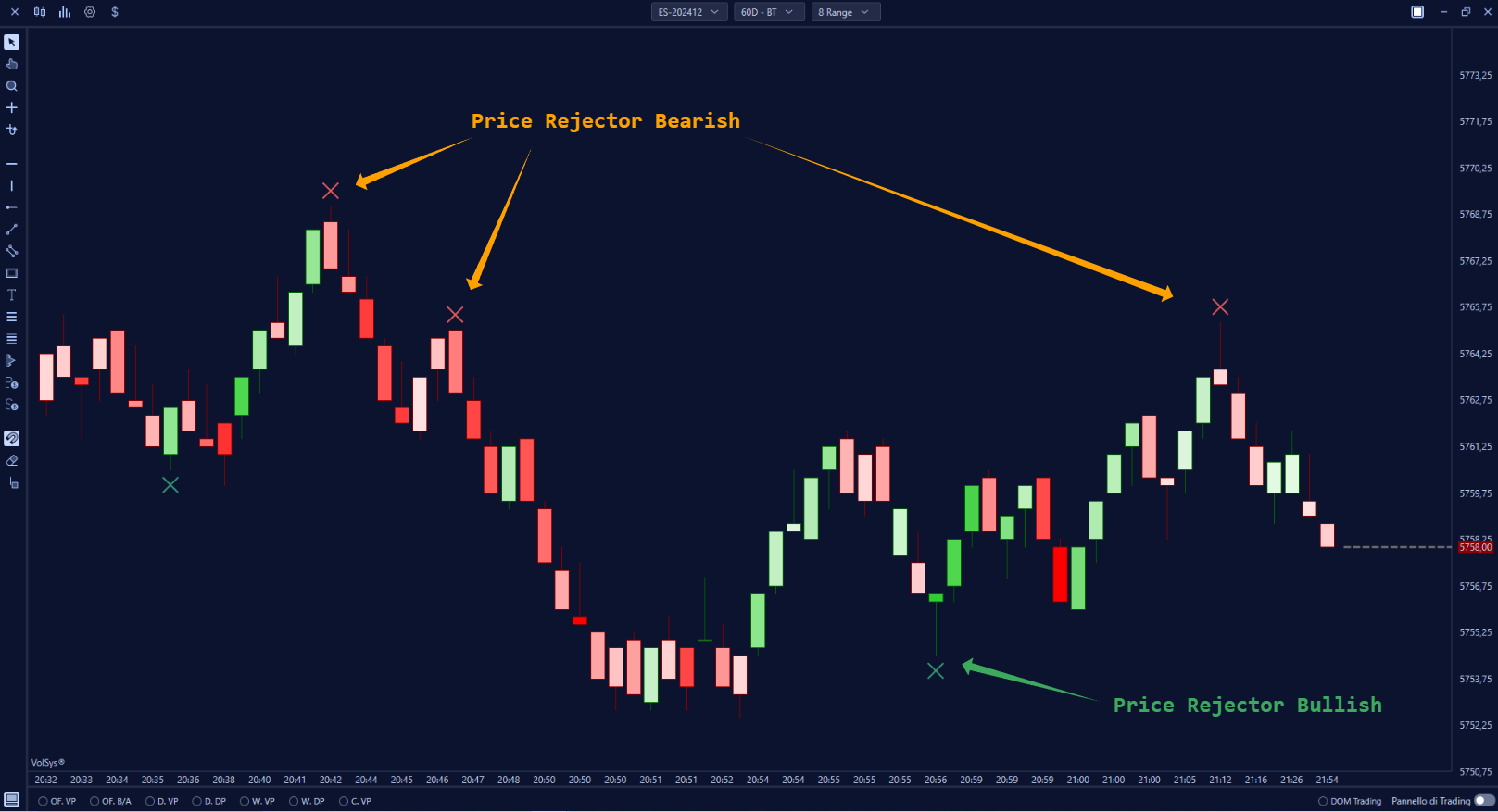

The Price Rejector indicator of VolSys identifies volumetric patterns based on imbalances returning markers directly on the graph to highlight potential reversal situations.

INDEX

• Settings-of-Use
  • Settings-Imbalance
    • % min. imbalance
    • Min. diagonal comparison
    • Period-search
    • Tick Offset
  • Series

Settings-of-Use

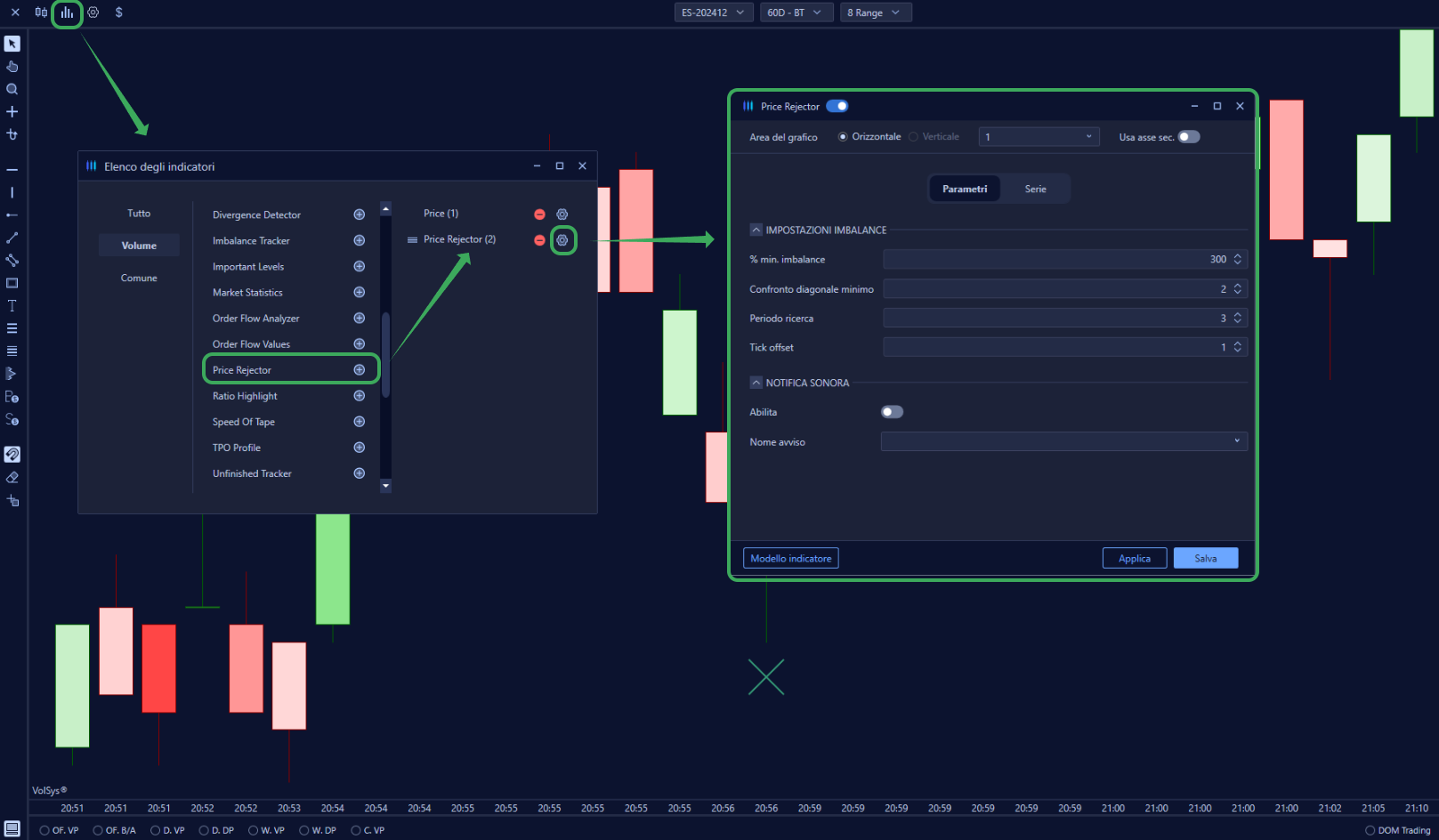

Clicking on the indicator's settings icon will open its configuration window, within which it will be possible to make several choices regarding the functionality of the indicator itself.

• <>

  Settings-Imbalance

• % min. imbalance

Defines the minimum % of imbalance that there must be in the highs for bearish candles or the lows for bullish candles;

• Diagonal comparison-minimum

Defines the diagonal comparison-minimum where to look for a imbalance.

Specifically, if 1 is entered as a parameter, the indicator will go'search for imbalances by comparing the last tick in Ask with the second-to-last tick in Bid in bearish bars and the last tick in Bid with the second-to-last tick in Ask in bullish bars.

If you enter 2 in addition to the previous comparisons you will also compare the second-to-last tick in Ask with the third-to-last tick in Bid in bearish bars and the second-to-last tick in Bid with the third-to-last tick in Ask in bullish bars and so on;

• Period-research

Defines the number of bars there must be to the left to qualify the high or low of a candle as a swing point.

It goes without saying that the shorter è the search period, the more è there è the probability of having markers provided by the indicator with the risk of incurring less resilient signals, conversely if you increase the search period the markers provided by the indicator will be gradually lower.

The same consideration canò be made if the previous conditions are changed;

• Tick Offset

Defines the number of ticks away from the maximum/minimum where the marker is plotted.

• Series

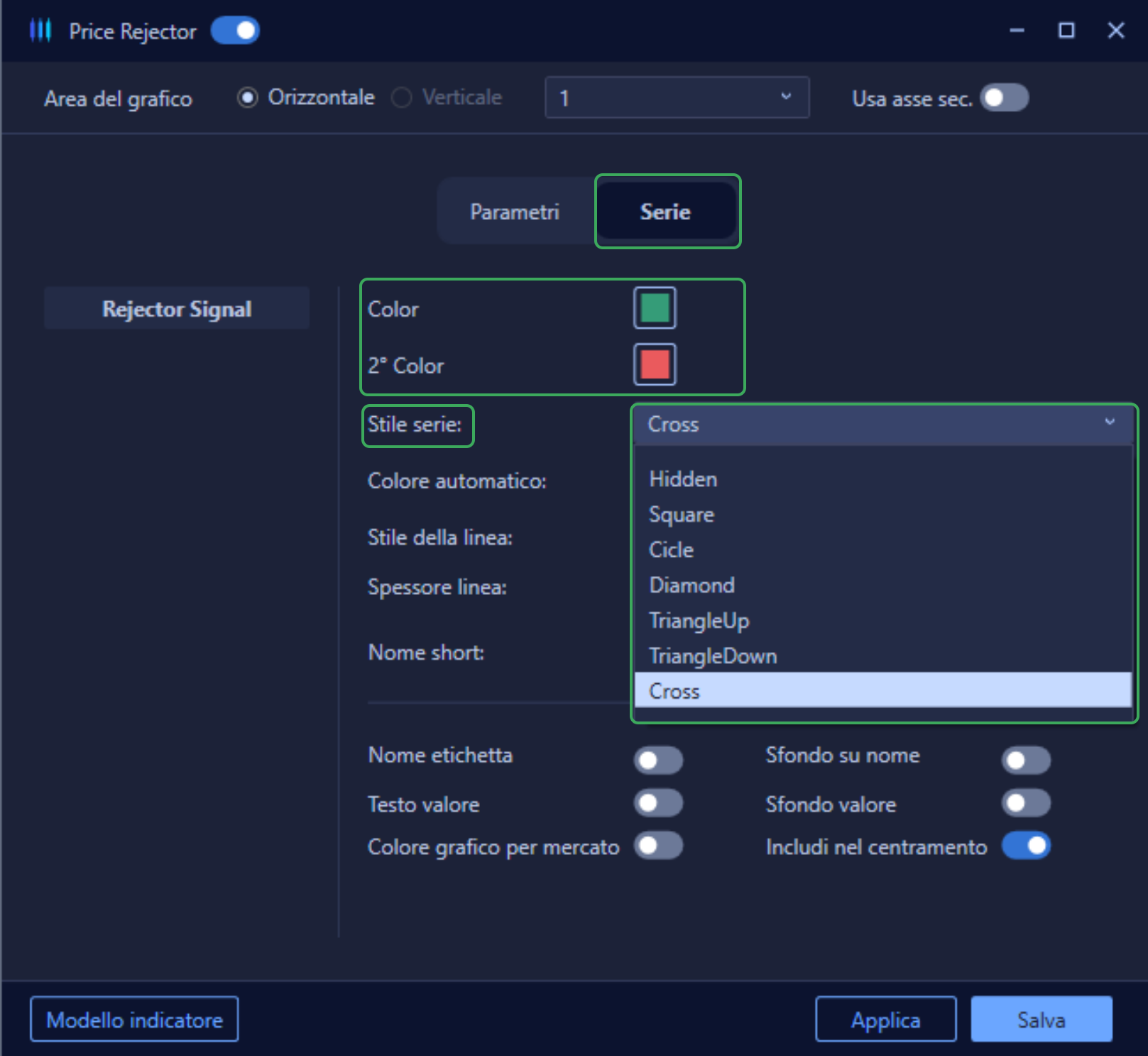

In this section it is possible to change the color of the marker differentiating between bullish and bearish signals, change the type of marker, choosing between square, circle, diamond, triangle and cross, as well as the thickness of the same.
