VolBook is a highly customizable platform, you will be able to create Templates, containing your favorite indicators, Work Plans, to never lose your set-up, and Annotation Configurations, to customize your drawing tools to your liking.

INDEX

• Template (Templates):
  • Where Templates are saved:
  • Load-a-Template:
  • Save-with-Name-Template:
• Workspace (Work-Plans):
  • Manage-Workplans:
    • Note-important:
  • Tool Config (Annotations-customized):

Template (Templates):

To better manage your Templates, here is a brief guide:

Template (Template): the template represents the set of indicators, configured, added on a single Heatmap, Adv. Dom, Time and Sales. This configuration can be saved and loaded on multiple heatmaps.

Where Templates are saved:

You can see the list of Templates (Templates) added on VolBook at path:

• Graph: Documents/VolBook/Template
• Time and Sales: Documents/VolBook/Time and Sales Template
• Adv. Dom: Documents/VolBook/Adv Dom Template

• You can paste into the Template folder, the files available for download from your Personal Area of the website: Volumetrica Trading

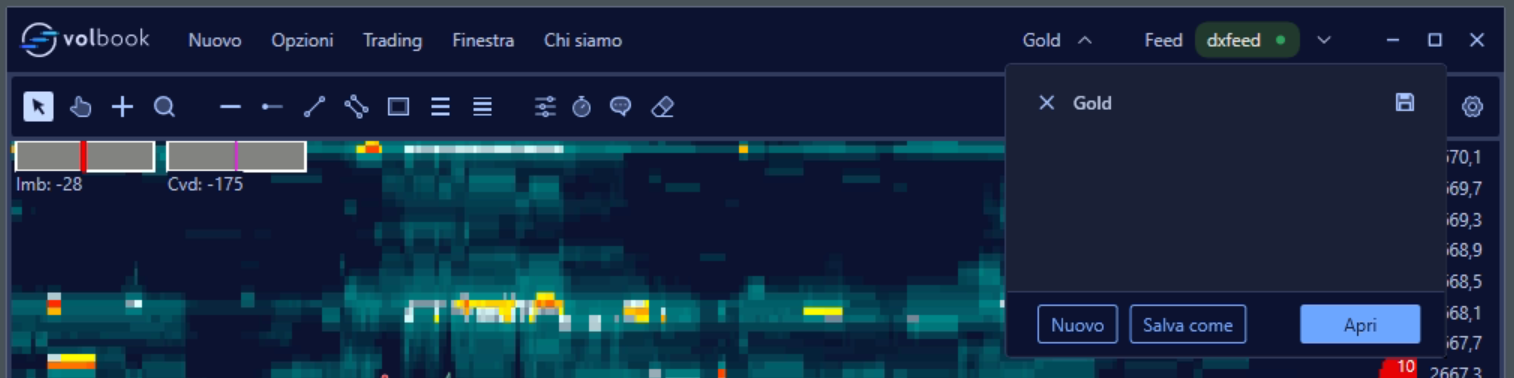

  Upload a Template:



  • Heatmap:
    • Click on Settings (gear)
    • Model - Upload
    • Select from the dialog box the template you want to upload
    • Click on Open
  • Time and Sales, Adv. Dom:
    • Click on Settings symbol (gear)
    • Model - Upload
    • Select from the dialog box the template you want to upload
    • Click on Open

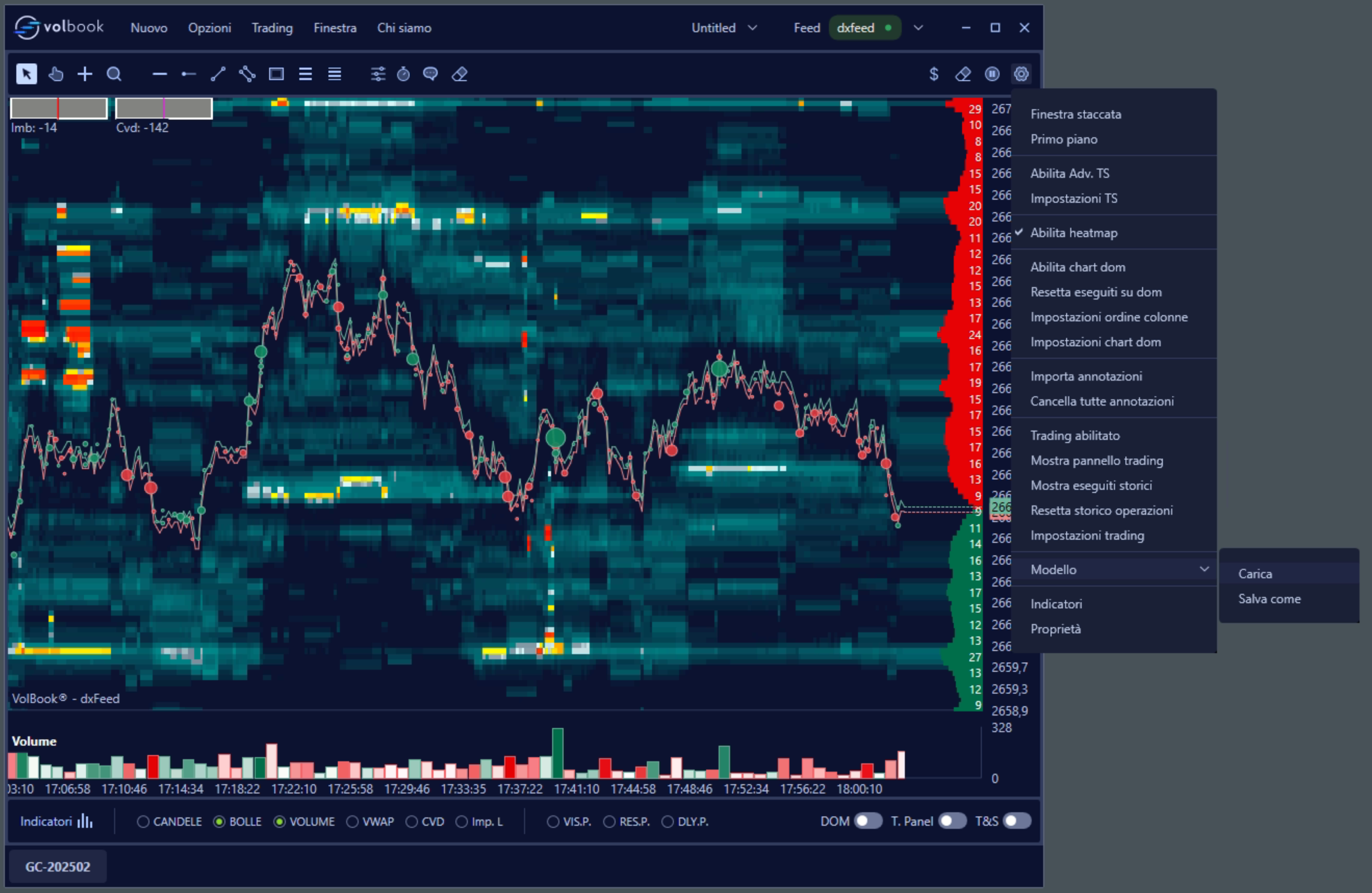

• Save a Template with Name :



  • Heatmap:
    • Create your Template by placing your favorite indicators on the chart
    • Click on the top right on Settings (gear)
    • Model - Save As
    • Give a name to the file to save (ex: Template Volume Profile 30 Min)
    • Click Save
  • Time and Sales, Adv. Dom, Scanner, Correlations:
    • Create your Model by changing the appearance of the VolSys tools
    • Click on the top right on Settings (gear)
    • Model - Save As
    • Name the file to save
    • Click on Save

Workspace (Work Plans):

To better manage workspaces, here is a brief guide:

Workspace: the workspace represents the set of windows such as Heatmap, time and sales and book, , arranged on the monitors. This configuration can be saved and, when the platform is started, reopened with one click. Multiple work plans can be opened and managed from the appropriate section, but it is not possible to view windows on different work plans at the same time.

Work Plan Management:

In the Work Plan Management window you can:

• View the list of open workplans
• Save the workplan in the current configuration
• Save as workplan
• Close the workplan

• Important note:

  • The default work plan has the name "Untitled" and will need to be saved with a specific name.
  • To close a work plan, use the appropriate section by clicking on the "X" next to the name. Do not close each window individually and then close the plan, as this will result in saving an empty work plan, deleting all open charts.

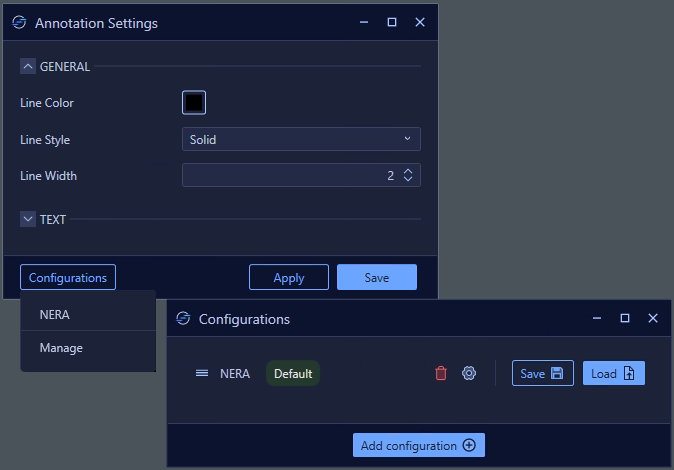

Tool Config (Custom Annotations):

In VolBook you can create different configurations for annotations, you can also decide which default configuration to assign to each annotation.

To manage and customize Annotations here is a short guide:

• Trace an annotation
• Select the traced drawing
• Right-click at at the appeared dot
• Edit the appearance of the annotation at will and apply the changes
• Click on "Configurations", you will find the configurations you have already saved
• Click on "Manage"
  • Now click on "Add Configuration"
  • reorder the saved Configurations, placing the first one as the Default Configuration
